113MAXDATA SR1202 M1 – StorView

RAID User Guide

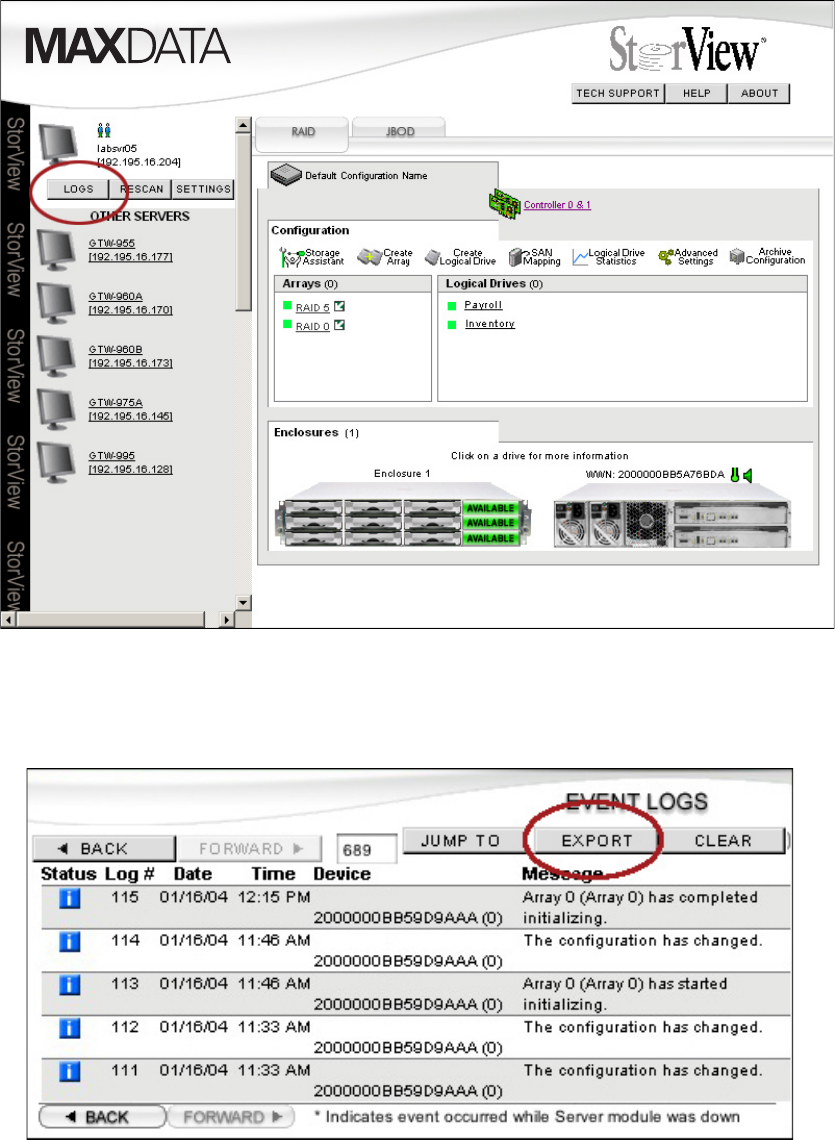

Figure 100. Main Screen

2. Click the EXPORT button in the Event Logs window.

Figure 101. Event Log Screen

The following are examples of some web browser file export options, your browser may be slightly

different.

• If you are using Internet Explorer as your web browser, you will see the following screen.

Choose to save the file or open it. The saved file format will be a comma delimited format.
